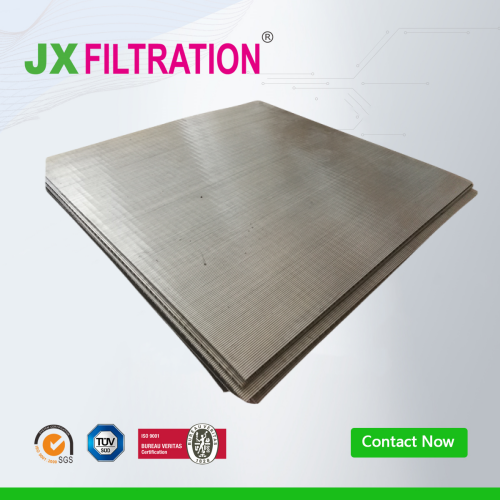

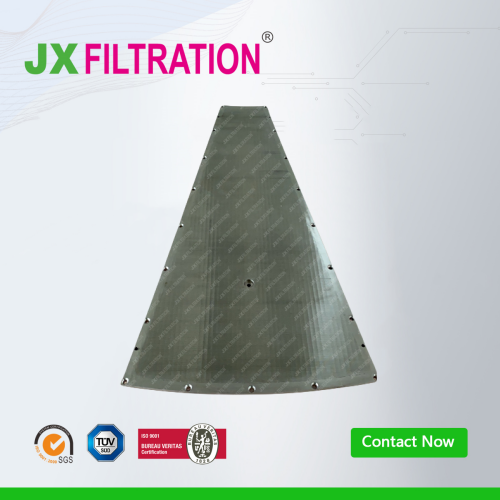

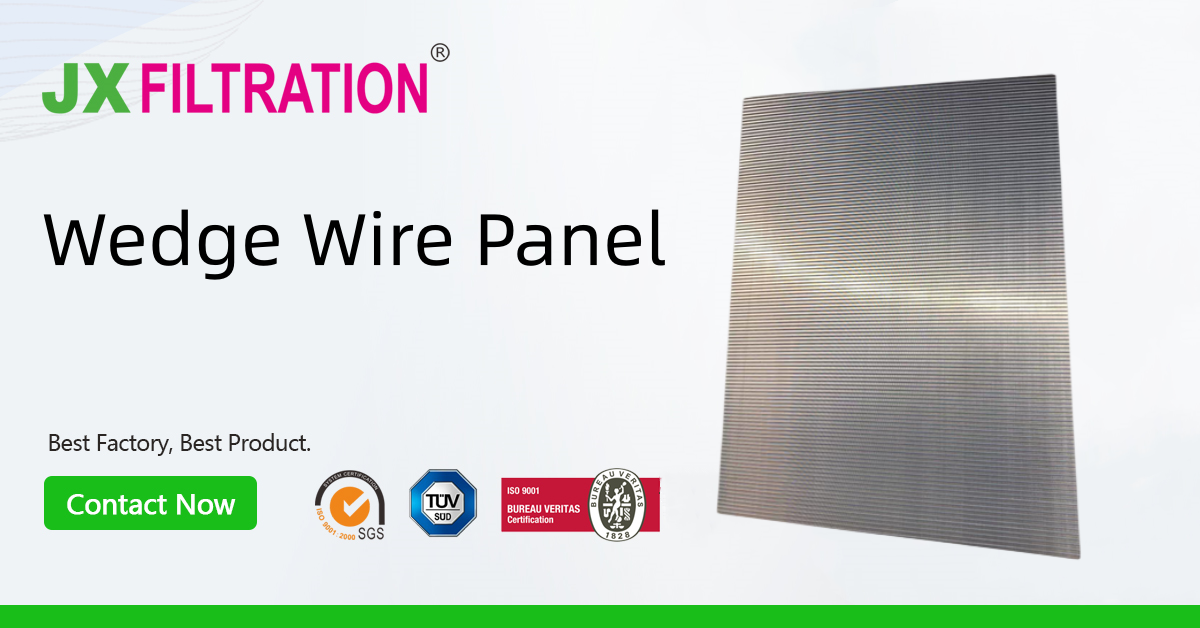

What is a Wedge Wire Panel

JX Filtration August 27, 2025 Wedge Wire Panel

Wedge wire, also known as Johnson Screen, is available in two forms: screen tubes and screen panels. It is made of stainless-steel wires and support rods, mainly used for fluid filtration.

Applications:
Widely used in industries such as petrochemical, coal mining, well drilling, wastewater treatment, food processing, pharmaceuticals, papermaking, and environmental protection.

Structural Principle:
The stainless-steel wedge wire screen is a metallic mesh structure element with high strength, rigidity, and load-bearing capacity. It can be manufactured into various rigid screening and filtration devices.

Product Features:

Large Flow Area: Continuous slots greatly increase the open area, ensuring excellent contact with aquifers.
Anti-Clogging Design: The V-shaped profile wire forms wedge-shaped slots, preventing clogging and ensuring smooth flow.
Long Service Life: Continuous slots maintain effective performance over time, reducing maintenance costs.
Robust Structure: High porosity, precise slot size, and strong construction of the screen ensure durability.
Easy Backwashing: Simple backwash cleaning, long service life, reliable quality, and overall low operating cost.
