What is a Sieve Bend Screen

JX Filtration August 21, 2025 Sieve Bend Screen

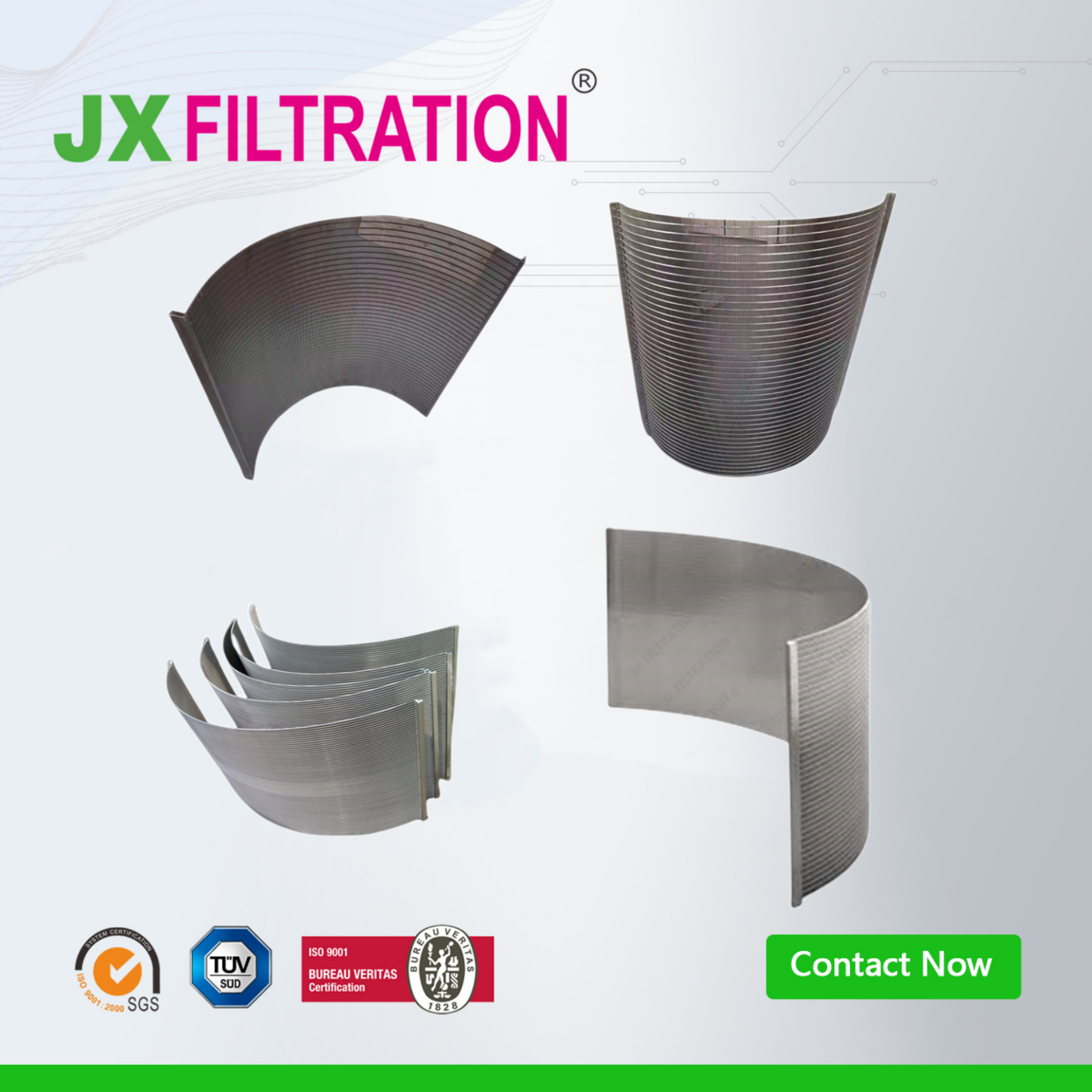

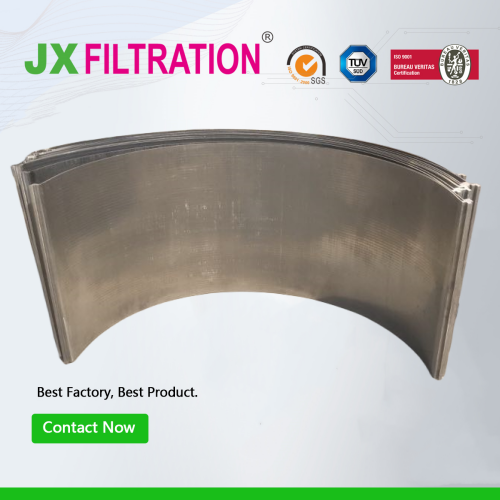

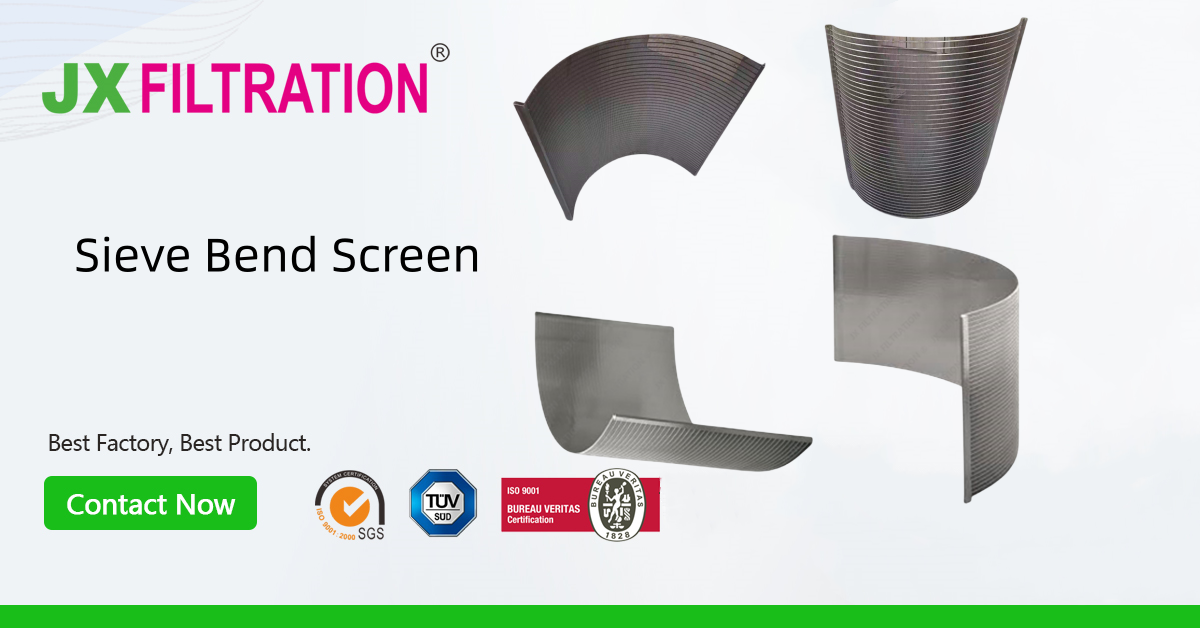

A Sieve Bend Screen is a new type of filtration equipment that operates without energy consumption. It features a simple and innovative structure with remarkable filtration performance. The screen mesh adopts a detachable design, allowing quick installation and removal by simply sliding in or pulling out.

The sieve bend screen is mainly used in coal processing plants for preliminary operations such as dewatering, desliming, and medium removal. It can also be used in conjunction with hydrocyclones to achieve fine particle classification, dewatering, desliming, and medium separation.

Its main components include the frame, sieve seat, screen box, screen panel, and feed distribution box. The screen surface and screen frame are equipped with a bearing steering structure, enabling a 180° rotation. The pivot shaft can also be reversed, allowing the feed and discharge ends to be interchanged. This design ensures even wear distribution and extends the equipment’s service life.

With its compact structure, easy installation, flexible operation, and simple maintenance, the sieve bend screen also offers excellent resistance to high temperature and corrosion, along with superior mechanical performance. It is widely used in industries such as metallurgy, chemical processing, and papermaking.
