What are the Classifications of Wedge Wire Cylinders

Material Options for Wedge Wire Cylinder:
Available in SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, and Hastelloy alloys.

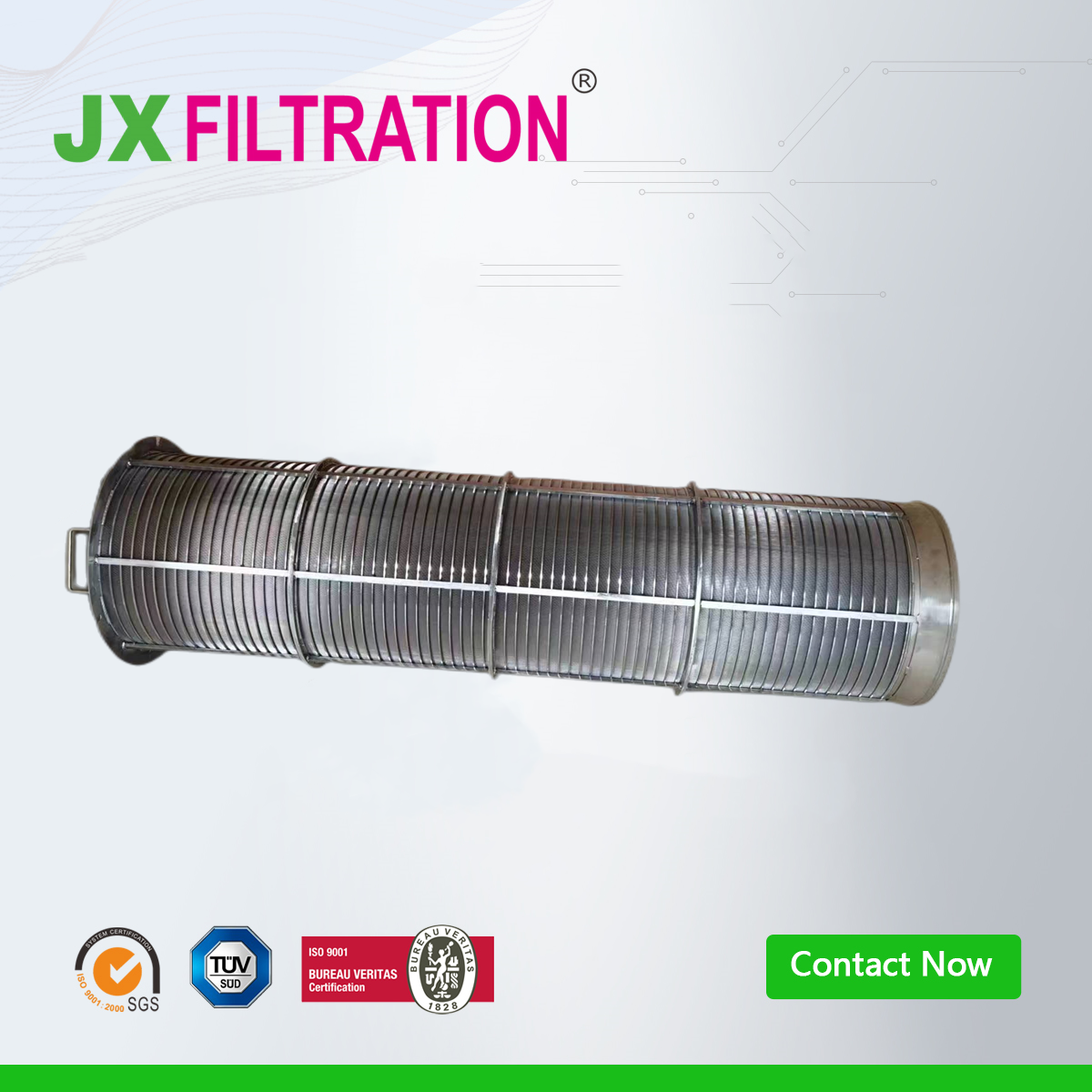

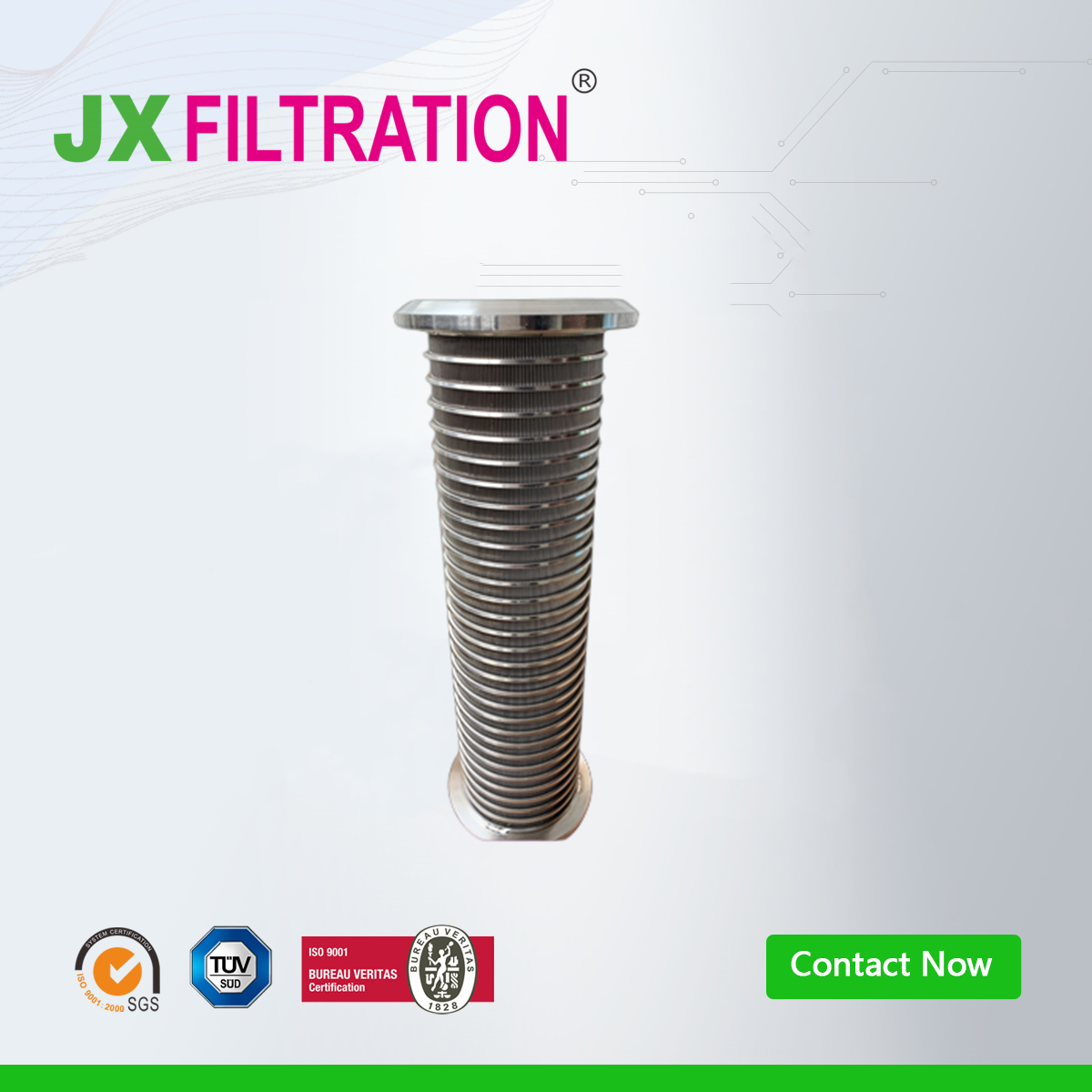

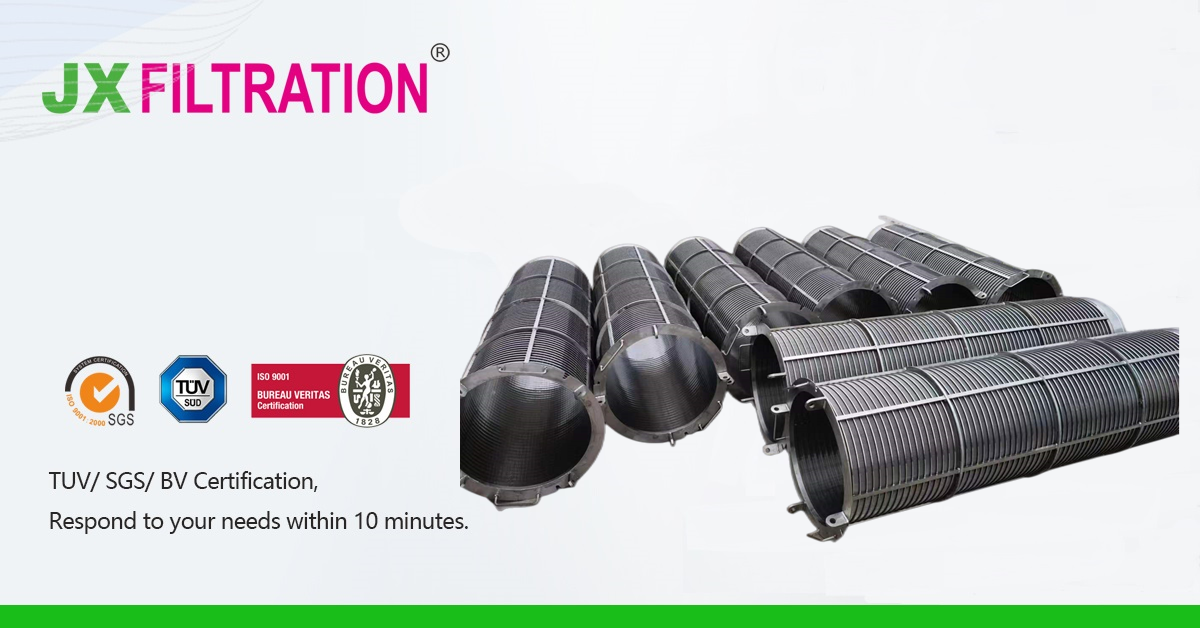

Wedge Wire Cylinder

Classification by Filtration Direction and Construction:

  • Outside-In Flow:

    • Direct winding, support rods inside, vertical arrangement, wedge wire wide face outside.

    • Direct winding, support rods inside, horizontal arrangement, wedge wire wide face outside.

  • Inside-Out Flow:

    • Reverse winding, support rods outside, vertical arrangement, wedge wire wide face inside.

    • Reverse winding, support rods outside, horizontal arrangement, wedge wire wide face inside.

    • Reverse winding, support rods inside, smooth surface inside, wedge wire wide face inside.

Reinforcement Options:

  • Circular or square reinforcing rings

  • Internal liner tube

  • Longitudinal reinforcing ribs (with welded flat bars)

Connection Types:

  • Threaded Connections: Available in external and internal threads, including metric, pipe thread, NPT, and Whitworth standards.

  • Flanged Connections: Requires specification of flange type, standard, nominal diameter, and pressure rating.
